G657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core

Product Categories
guangzhou fiber cablepuls co ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

G657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core

  • 1
  • 2
  • 3

Brand Name : PUNAISGD

Model Number : GJYXCH-1B6

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000km/month

Delivery Time : 7days

Packaging Details : woode drum

Keyword : Optical Fiber Drop Cable

Type : GJYXCH-1B6

Jacket Sheath : LSZH

Net Weight : 0.8kg/km, add 0.05kg/km

Steel : 0.45mm

Installation Style : Aerial

Fiber : G652D/G657A1

Steel Wires : 1mm, 0.45mm*2pcs

Installation Method : Indoor/Outdoor

Contact Now

G657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core

G657A1 Fiber Optic Cable Description:

The G657A1 Fiber Optic Cable (Fiber to the Home) drop cables boast a robust design featuring a flame retardant cable jacket fortified with a supporting wire, ensuring durability and safety. Within the cable, sturdy internal strengthening members provide structural integrity, capable of supporting the entire cable assembly.
Crafted with a specialized structure, these drop cables facilitate effortless extraction of fibers, streamlining installation processes. Ideal for direct deployment into interior spaces, particularly residences and offices, these FTTH drop cables offer a seamless solution for high-speed internet connectivity, catering to the demands of modern living and professional environments alike.

Specification
FTTH DROP CABLE
MODEL: FDC-GJXCH-4B6a1
Fiber: SM G657A1
Fiber Count: 4
Parallel Wire: 0.45mm *2
Messenger Wire: 1.0mm
Jacket Material: LSZH
Cable Length: 1Km/Drum 2km/drum
Simple Specification:
Insertion Loss: ≤0.30dB Return Loss: ≥50dB
Durability: ≤0.2dB
Test Wavelength: 1310/1550nm
Operation temperature: -40℃~ 85℃
GJYXCH FTTH Fiber Optic Drop Cable 1 Core G657A1 Single Mode

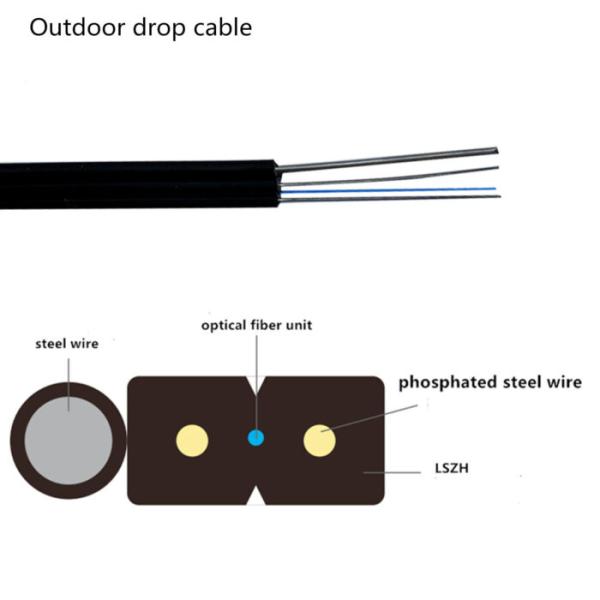

Outdoor FTTH Drop Cable
With FRP & steel wire as strengthen member
LSZH outer sheath
G.657A1 optic fiber (or as request)
Fiber To The Home (ftth)
Product life of 15 years.
Storage/Operating Temperature: -40°C to + 70°C
Optical Cable Appplication
Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable
Laying method:
Working temperature: -40ºC~+60ºC
Bend radius: Static 12.5 times the cable diameter; Dynamic 25 times optical cable diameter
G657A1 Fiber Optic Cable High Quality Drop Cable LSZH CoreG657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core
G657A1 Fiber Optic Cable High Quality Drop Cable LSZH CoreG657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core
Bow-type Drop Outdoor/Indoor Cable for Access Network
Technical Parameters
Fiber Count
Cable Type
Cable
Cable Weight
(kg/km)
Tensiles Strength
Crush Resistance Long/short
Benging Radius
1
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
2
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
4
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
1
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D
2
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D
4
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D


G657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core
