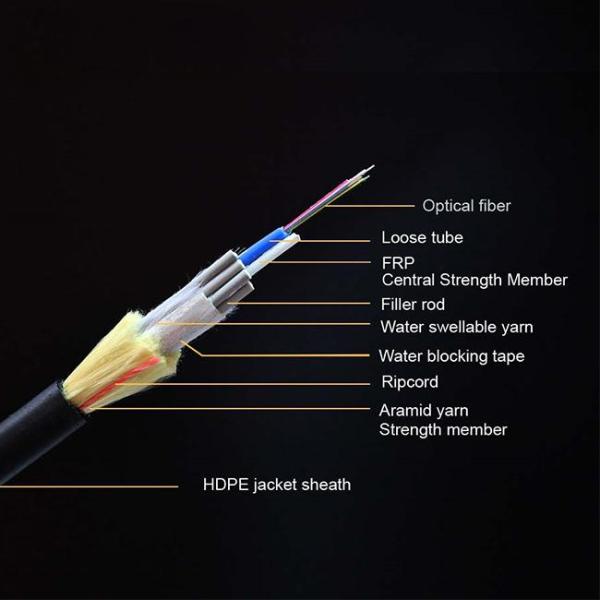

2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span

  • 1
  • 2

Brand Name : PUNAISGD

Model Number : ADSS-48B1.3-400M

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Type : ADSS-48B1.3-400M

Fiber Type : Single-mode G.652D

Model No : All Dielectric Cable

Strength Member : Aramid Yarn

Cable Model : double jacket 400m Span

Package : Wooden Drum/Customized

Cable Weight : 280 kg/km

Life Expectancy : 30 Years

Outer Diameter : 10.0mm

Name : ADSS Fiber Optic Cable

Contact Now

2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span

ADSS cables are suitable for installation on structures for both distribution and transmission lines. Standard jacket materials have a space potential exposure compatibility up to 12 kV. If the cable is installed on structures with medium to high voltage transmission lines, it is recommended that electrical stress analysis be performed to determine the appropriate cable placement on the structure to insure that the e-field space potential is <12kV.


In a major advancement for fiber optic technology, the new 12, 24, 48, 72, 96, 144, and 288 Core ADSS Double Sheath Fiber Optic Cable is now available, engineered specifically for long-span overhead installations of up to 400 meters. This cutting-edge cable is designed for seamless integration in power transmission and distribution systems, offering an all-dielectric design that eliminates electrical interference in high-voltage environments.

Featuring a double sheath for enhanced durability, the cable boasts superior resistance to UV radiation, harsh weather, and mechanical wear, making it an ideal solution for outdoor networks in challenging terrains. With multiple core count options, it provides the flexibility needed for diverse telecommunication and data transmission requirements, offering increased bandwidth and connectivity.

2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span

2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span
PRODUCT SPECIFICATIONS
2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span

Fiber data
Fiber Type Attenuation 1310nm MFD


(Mode Field Diameter)

 Cable Cut-off Wavelength λcc(nm)
@1310nm(dB/KM) @1550nm(dB/KM)
G652D ≤0.36 ≤0.22 9.2±0.4 ≤1260
G657A1 ≤0.36 ≤0.22 9.2±0.4 ≤1260
G657A2 ≤0.36 ≤0.22 9.2±0.4 ≤1260
G655 ≤0.4 ≤0.23 (8.0-11)±0.7 ≤1450

Technical Parameters


Fiber Count Cable Diameter
(mm) ±0.5		 Cable Weight
(kg/km)		 100m Span
Tensile Strength (N)		 Crush Resistance (N/100mm) Bending Radius
(mm)
Long Term Short Term Long Term Short Term Static Dynamic
2-12 9.8 80 1000 2500 300 1000 10D 20D
24 9.8 80 1000 2500 300 1000 10D 20D
36 9.8 80 1000 2500 300 1000 10D 20D
48 9.8 80 1000 2500 300 1000 10D 20D
72 10 80 1000 2500 300 1000 10D 20D
96 11.4 100 1000 2500 300 1000 10D 20D
144 14.2 150 1000 2500 300 1000 10D 20D

Application

Power Line, dielectric needed or large span communication line.

Laying Method

Self-supporting aerial.

Operating Temperature

Temperature Range
Transportation Installation Operation
-40℃~+70℃ -5℃~+45℃ -40℃~+70℃

Standard

DL/T 788-2016

PACKING AND MARK

Fibercable puls cables are coiled on bakelite, wooden, or ironwood drums. During transportation, the right tools should be used to avoid damaging the package and to handle them with ease. Cables should be protected from moisture, kept away from high temperatures and fire sparks, protected from over-bending and crushing, and protected from mechanical stress and damage. It is not allowed to have two lengths of cable in one drum, and both ends should be sealed. The two ends should be packed inside the drum, and a reserve length of cable not less than 3 meters should be provided.


2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span
The color of cable markings is white. The printing shall be carried out at intervals of 1 meter on the outer sheath of the cable. The legend for the outer sheath marking can be changed according to the user's requests.

Factory veiw
2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span


2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span


2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span


2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span



Our Factory
2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span
2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span
2 24 48 72 96 144 288 Core ADSS Double Sheath Fiber Optic Cable For 400m Span
