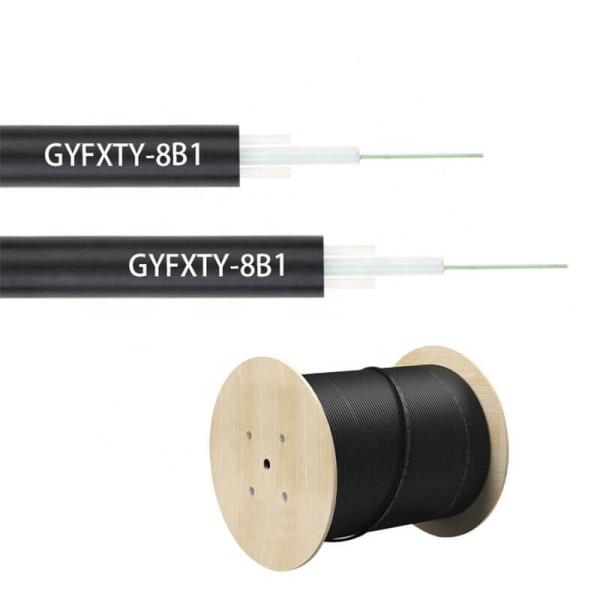

Outdoor Fiber Optic Cable GYFXTY Type With 2 Parallel Frp Uni-tube 4F 6F 12F Span

  • 1
  • 2
  • 3

Brand Name : PUNAISGD

Model Number : GYFXTY-16b1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000km/month

Delivery Time : 7days

Packaging Details : woode drum

Type : GYFXTY-16b1.3

Cores : 16 fibers

Fiber Brand : Corning, OFS, YOFC

Construction : Central Loose Tube

Useful : Outdoor Fiber Optic Cable

Transport Package : Wooden Drum

Cable Dimension : 7mm

Jacket Color : Black

Mode : Singlemode G652D

Out Sheath : PE sheath

Strengthen Member : 2pcs FRP

Name : Outdoor Fiber Optic Cable

Contact Now

Outdoor Fiber Optic Cable GYFXTY Type With 2 Parallel Frp Uni-tube 4F 6F 12F Span

DescriptionUni-Tube All Dielectric Aerial Drop cable is specifcally designed for Fiber-to -the-Subscriber applications. It is a round, all dielectric cable ideally suited for self-supporting drop-type installations as well as in lashed or conduit builds. The overall glass yarn strength member is used for additional mechanical protection.


Temperature Range

Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D

Features

Small size, Low cost. Up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP wire and overall glass yarn to enhance tensile resistant. and protect cable from mechanical damage.
Designed for use with inexpensive attachment hardware. Self-supporting no messenger needed.


Applications
Conduit, Duct, Aerial/Lashed.
FTTx, Access.

Option
FRP or KFRP strength member can be choosed .
Glass yarn or Aramid yarn can be choosed.


OPTICAL CHARACTERISTICS


G652
50/125μm
62.5/125μm


Attenuation
(+20℃)
@850 nm

<=3.0dB/km
<=3.3dB/km
@1300 nm

<=1.0dB/km
<=1.0dB/km
@1310 nm
<=0.36dB/km


@1550 nm
<=0.22dB/km


Bandwidth
(Class A)
@850 nm

>=500 MHz*km
>=200 MHz*km
@1300 nm

>=1000 MHz*km
>=600 MHz*km
Numerical Aperture

0.200+-0.015NA
0.275+-0.015NA
Cable cut-off wavelength
<=1260 nm





Cable Count Out sheath Weight Minimum allowable Tensile Strength
minimum allowable Crush Load
Minimum Bending Radius
Storage
Diameter (N) (N/100mm) (MM) temperature
(MM) (KG) short term long term short term long term short term long term (℃)
2 7.2 45 1200 500 1000 300 20D 10D 20
4 7.2 45 1200 500 1000 300 20D 10D 20
6 7.2 45 1200 500 1000 300 20D 10D 20
8 7.2 45 1200 500 1000 300 20D 10D 20
12 7.2 45 1200 500 1000 300 20D 10D 20
